Smode 9.1
_
=

Smode 9.1

What's new in 9.1 ? (22/04/2021)

Unreal Integration

Link and Video transfer for Unreal Device The Unreal Device hosts the connection with Unreal Read More

Python Integration

Added support for Python Script Write Python scripts inside Smode Read More

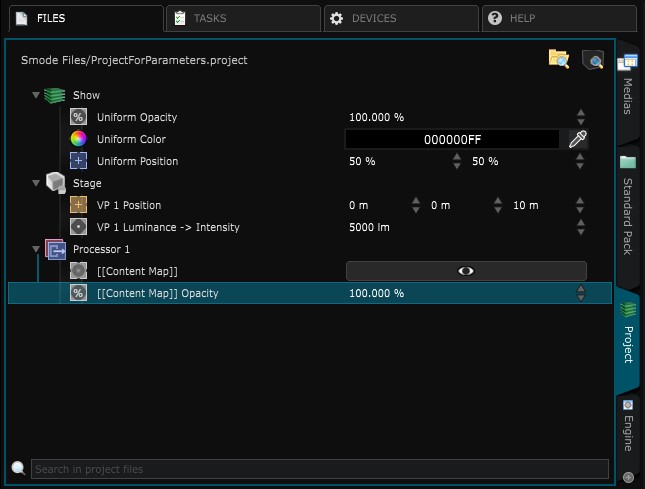

Project have now exposed parameters

In the media folder,Project panel and Full project, the first parameter bank of the content, the stage and each processor are available

Notch Integration

Since Smode 9.0 What's new in 9.0 ? (09/07/2020) Read More Smode support Notch Block .dfxdll file Notch Block File ".dfxdll" Read More

Full ChangeLog of Smode 9.1

These features are available in all editions of Smode.
XR:
2D & 3D:
  • New: "Link to" in Parametric Placement defined by Position, Scale, Rotation and Flip parameters Read More for linking one layer to another layer
  • New: Link To Tracker Link To Tracker Placement relative to tracker Read More 3D placement to use with a Tracking System
  • New: Auto-illuminate Surface geometry renderer AutoIlluminate Surface Display geometry's triangles as a AutoIlluminate surface Read More
  • Chg: separate RGBA components for Invert Turn your image negative Read More Modifier
  • Chg: update OpenJPEG from v1.5.1 to v2.0.0

UI & UX:
  • New: Copy and Paste of keyframes in timeline from one element to multiple target elements
  • New: Drag and Drop of a parameter from multiple selected elements into a timeline
  • New: Copy and Paste into multiple elements in the tree
  • New: Project have now exposed parameters ( in the media folder,Project panel and Full project) the first parameter bank of the content, the stage and each processor are available
  • Chg: Locked elements cannot be selected in the viewport anymore, both for single and multiple selection
  • Chg: "Go to" parameter in Timelines centers vertically on it + option to select all keyframes at once in the Timeline -
  • Chg: expose a parameter from the parameter editor changes the selection in the Element tree but does not lose the focus anymore
  • Chg: Project Parameters are now accessible via the pipeline panel
  • New: Warn if Project timebase do not match engine timebase
  • Fix: Fade in - Fade out: Multiple selection is not affected by shapes modification #4781
  • Fix: Importing scene panel do not have scroll bar
  • Chg: to open new tab (like Engine/ memory...) in the file tab it needs "Ctrl+Alt" shortcut
  • New: Control+Alt+S to enforce autosave when on air

Devices:
  • New: Support of FreeD Tracking system Use a FreeD camera tracking protocol Read More
  • New: Support for multiple values atomic messages sent for an osc address.
  • New: Support of cross GPU SpoutVideoInput and SpoutVideoOuput (Nvidia Quadro Only)
  • New: Support of 16bits and HDR texture for SpoutVideoInput and SpoutVideoOutput
  • Chg: update to DeltaCast driver from v6.13.1 to v6.16.1 and GPU extension to v1.15 to add support for DELTA-12G-elp-h / 2i1c / Flex and genlock Out
  • Chg: OptiTrack use now a Tracking System To visualize tracked points using a tracking device Read More stage Element

Tools:
  • New: Support of Python Script Write Python scripts inside Smode Read More
  • New: Delay Link Modifier Delay the change of the link Read More (frame based)
  • New: Per server loading of tools (Smode Net)
  • New: Color Calibrator: optimization of image difference
  • Fix: Invert Take the input value and multiply by -1 Read More now does by default x * -1
  • New: Math Inverse Use a Inverse Function 1/x Read More link modifier for 1/x operation
  • Chg: update AtemSwitcher SDK from v7.2 to v8.5.3
  • New: Timeline in Animation bank can now be controlled by TC
  • New: Import/Export camera model calibration into file: Physical Camera A camera that simulate a real-one Read More

Video Audio:
  • New: Batch transcode for multiple audio files.
  • Chg: image sequence import supports same Prores and Hap codecs as transcode
  • Chg: update Snappy to v1.1.8

Engine:
  • New: Support of GPU Selection on Nvidia Quadro.
  • New: TimeBase presets 23.98Hz & 47.95Hz for Film NTSC.
  • New: Configuration of CPU core affinity in configuration: Engine Preferences General preferences of SMODE's rendering engine. Add your Device here: MIDI controller, OSC, Video and Audio devices etc. Read More
  • New: custom NDI group or source ips for better discovery: Engine Preferences General preferences of SMODE's rendering engine. Add your Device here: MIDI controller, OSC, Video and Audio devices etc. Read More
  • New: Engine external clock synchronization
  • New: Limit disk space allocated to log files: Medias directories Manage media directories Read More
  • Fix: Precision issue when moving placements inside large content maps / resolutions
  • Chg: update from Spout from v2.006 to v2.007
  • Chg: update Eigen from v3.2.5 (June 16 2015) to v3.3.7 (December 11 2018)
  • Chg: update Ceres from v1.0.1 (May 02 2012) to v1.14.0 (Mars 23 2018)
  • Chg: update Wibu CodeMeter from v7 to v7.20a
  • Chg: update NSIS v3.03 to v3.06.1
  • Chg: Frame Accurate Cues Playback
  • Fix: Import external content and scene into master scene create duplicate
You can find the fix made for the Smode 9.1 revision What's fixed in 9.1 revision ? Read More
See the changelog of Smode 9.0 What's new in 9.0 ? (09/07/2020) Read More
