Configure the Video Output

Configure the Video Output

Display your content on output monitors

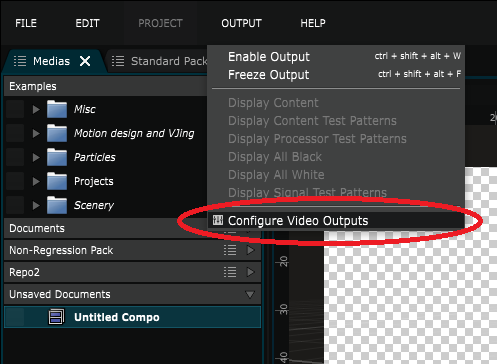

If you want to display content with Smode, you need to configure the Output Windows size and placement through Video Output Device Video Output Devices are devices that enable the sending of a video stream out of Smode Read More . For this, use menu OUTPUTMenu related to Smode's video outputs > Configure Video Outputs

Now apply the changes and eventually reopen preferences in order to have access to what follows :

You can also use the Bounds presets to fit a complete screen.

To avoid screen tearing you must enable Video Outputs Vertical Synchronization. This limits the frame rate to the display device frequency.
Do not forget to apply changes before closing Preferences Panel.
You need to enable the Enable Output Enable/Disable Video Outputs Read More button (or use the [Ctrl]+[Shift]+[Alt]+[W] keyboard shortcut) to enable the video outputs.
Remind that you need to activate the ON-AIR Enable/Disable ON-AIR mode Read More mode to maximize performance.
If your Smode output windows overlap several display devices, use NVIDIA Mosaic.

Ensure that your Smode output window does not extend beyond your desktop coordinates or miss part of the full display size to take advantage of all Nvidia full-screen optimizations.
