10 bit colors Output

Enable 10 Bits support for the Standard Output The Standard Output can be used to display the output on a second monitor Read More

Your output needs to be in full screen. You may also need to enable Mosaic/Eyefinity for it to work with multiple displays.

Nvidia

!! Activating 10-bit can result in the NVIDIA driver crashing and instability in video export, especially on not pro cards.

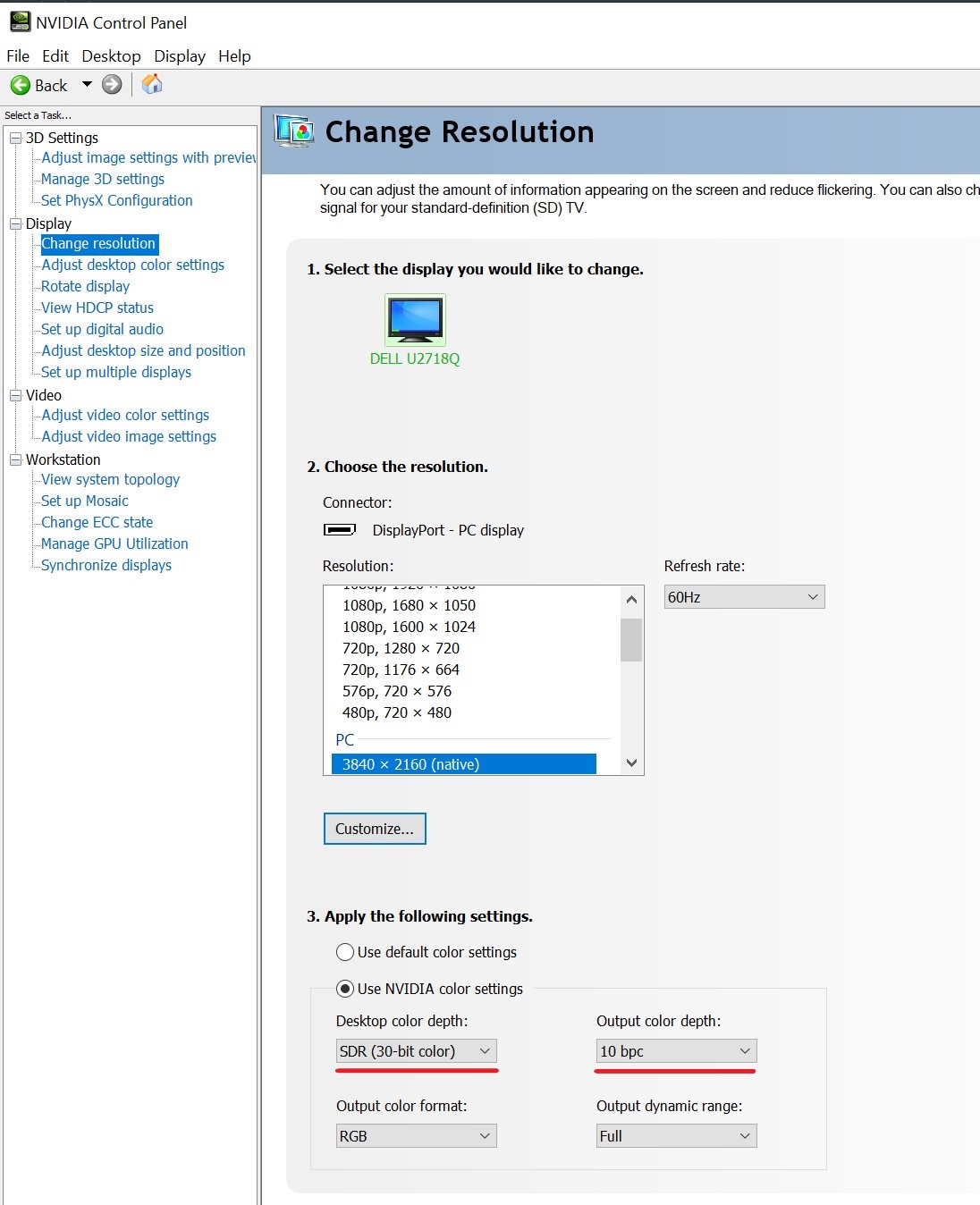

In the NVIDIA Control Panel, set your desktop color depth to 30 bits and the output color depth to 10 bpc, as shown below:
Then, in Smode Preferences Smode Preferences panel Read More , in Engine Preferences General preferences of SMODE's rendering engine. Add your Device here: MIDI controller, OSC, Video and Audio devices etc. Read More , in the 'GPU Settings' section, you can uncheck the 'Enforce GPUAttribute' , change the 'Color Depth' to 10 bits, and the 'Alpha Depth' to 2 bits:

AMD

In the AMD Advanced Settings, enable the 10-bit pixel format support:
Then, in Smode Preferences Smode Preferences panel Read More , in Engine Preferences General preferences of SMODE's rendering engine. Add your Device here: MIDI controller, OSC, Video and Audio devices etc. Read More , in the 'GPU Settings' section, you can uncheck the 'Enforce GPUAttribute' , change the 'Color Depth' to 10 bits, and the 'Alpha Depth' to 2 bits:

Verify the settings

To test your setup, you can download this image: 10_bits_test_image.tif
Create a new Compo Content Creation and Compositing in Smode Read More , set its pixel type to 10 bits or higher, and Enable Output Enable/Disable Video Outputs Read More .
10-bit colors aren't supported in the Smode Viewport, so you can only test them on the output.
This TIFF image is split in half: the top half has an 8-bit gradient, so you will always see banding, and the bottom half has a 10-bit gradient, so you should see less banding.

In a Project

If you are working within a Project, make sure that your project settings are set to 10 bits or higher.

Test GPU compatibility

To check the 10-bit compatibility of your GPU, you can run the visualinfo.exe app, which will output a txt file with all supported pixel formats: Visual-Info.zip
Once you have run the app, you can open the .txt file and look for the wp line to see the color bit depth (in the example below, it's 8).
If you scroll through the file in the wp section, you will see if your GPU supports 10 bits or not.
In this example, after ID 129, I can see the different 10-bit support that confirms that I can use a 10-bit color depth in Smode.
