Function Spline

Function Spline

3D Generator - A Spline defined by a Function Function that maps a number (percentage, time, etc.) to a value Read More that can be either generative or keyframed

It is a spline where the shape is defined using either a multi components Keyframe Function Define a function using keyframes Read More or a combination of Keyframe Function Define a function using keyframes Read More , Parametric Function A function that is defined by parameters (sine, square, noise, etc.) Read More or Custom Function Draw a function Read More

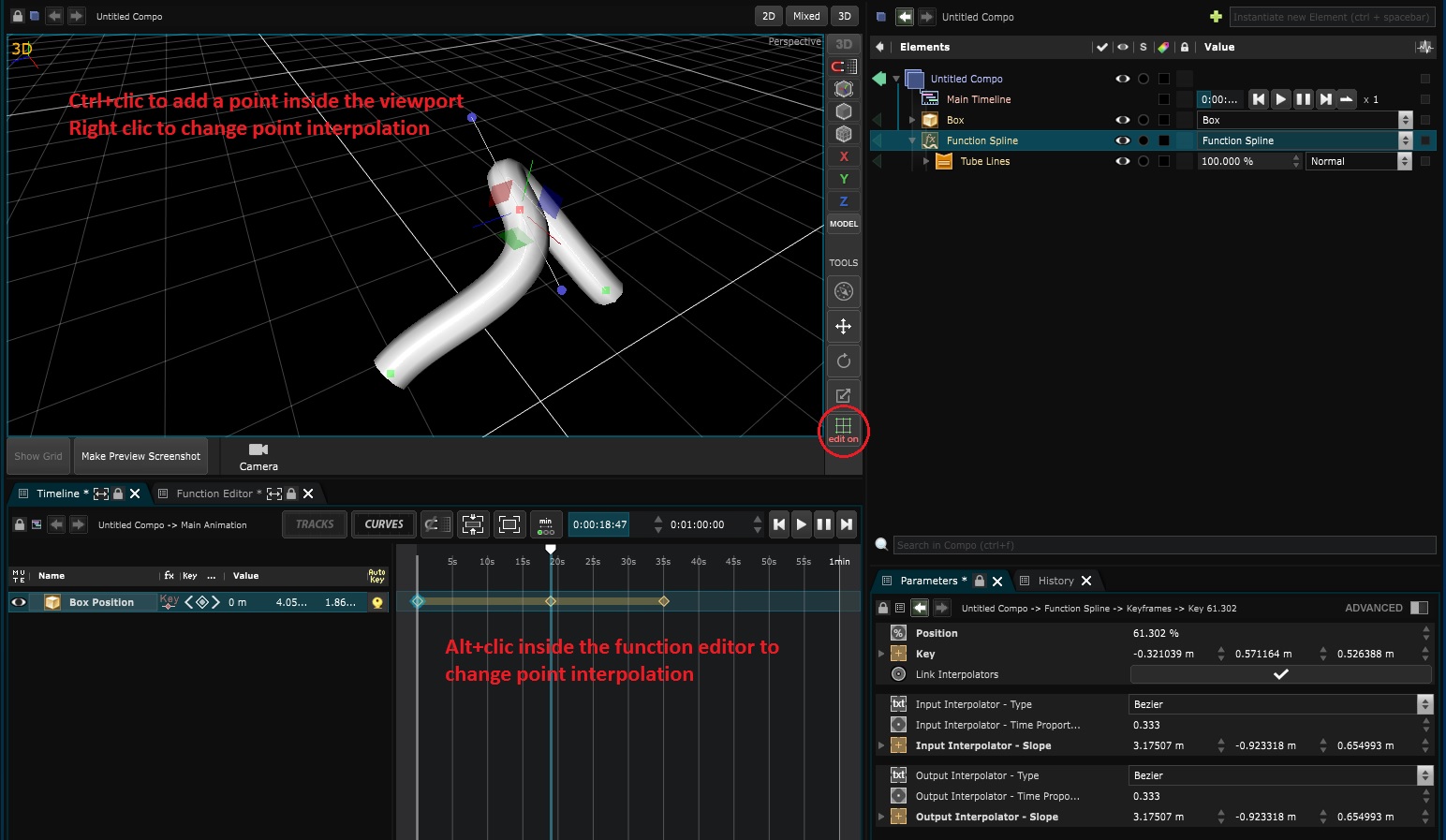

By default this generator is configured as a keyframe function and can be manipulated through the Viewport Preview and edit your content Read More in edit mode. Go see the "Trajectories splines manipulation" chapter inside the Animation Linear and non-linear animation Read More page for further information.
On the example below a Tube Lines Generate tubes over geometry edges Read More has been added on the Spline.

Parameters

  • Function (3D Position Function) : Function of the function spline, can be either a Keyframe Function Define a function using keyframes Read More or a combination of Keyframe Function Define a function using keyframes Read More , Parametric Function A function that is defined by parameters (sine, square, noise, etc.) Read More or Custom Function Draw a function Read More
  • Closed (On/off option) : Automatically close the spline
  • Precision (Positive Number (> 0)) : Number of point to generate using the Functionfunction spline

Presets


Standard Presets: Function Spline - Circle
